제품소개

KAF는 풍부한 경함과 노하우를 바탕으로 그 수준을 인정받고 있으며,
세계적 기업들과 경쟁하여 Global Maker로 도약하고 있습니다.

Staple Fiber

Staple Fiber

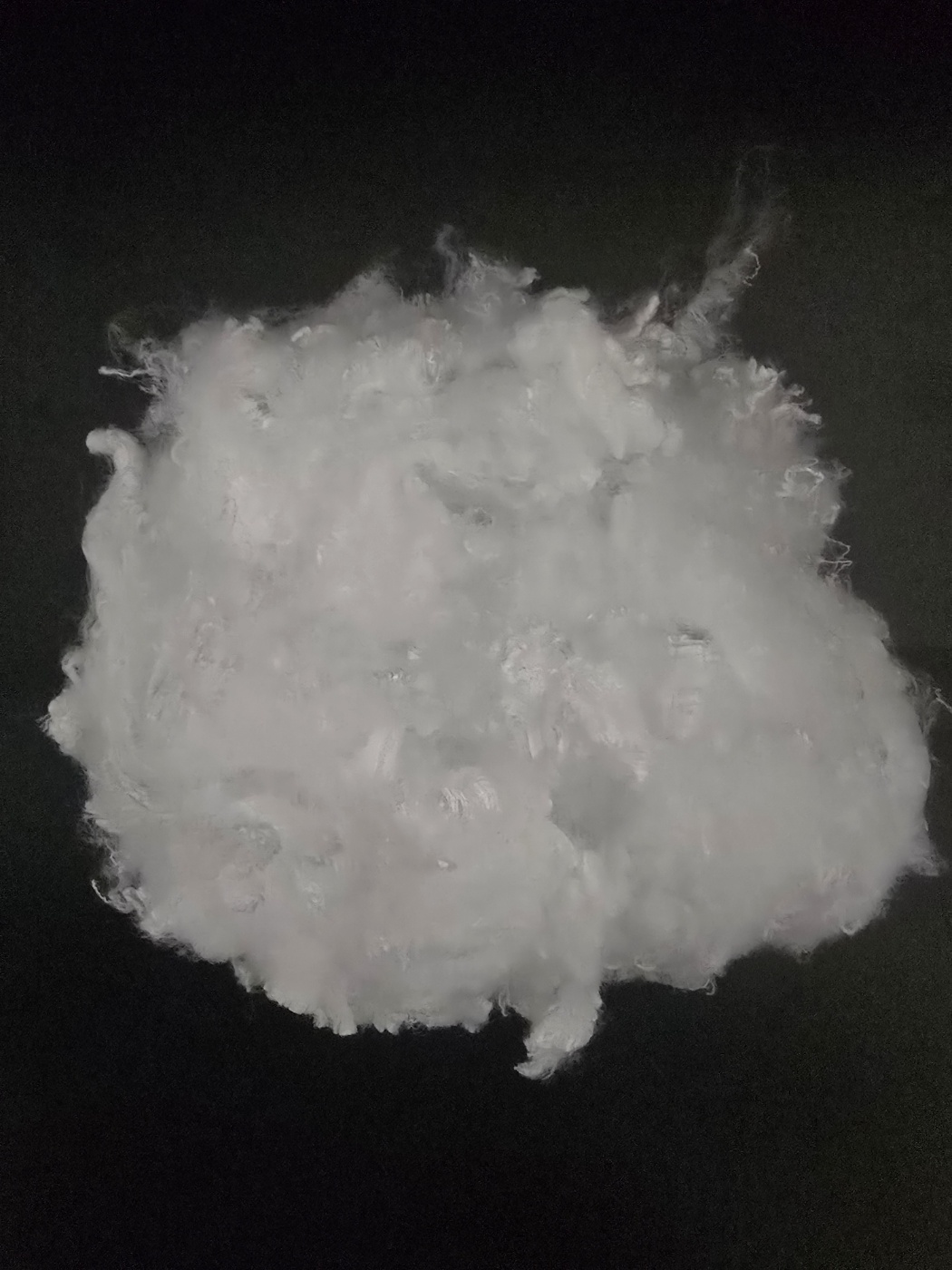

Staple Fiber란 Crimp가 주어진 길이가 짧은 섬유를 말합니다.

01

KAF
Staple Fiber 단섬유

Staple Fiber 단섬유

KAF에서 생산하는 단섬유는 폴리머인 Polypropylene(PP), Polyehylene(PE),
Polyethylene terephthalate(PET)를 원료로 사용하여 Staple Fiber를 생산합니다.
생산공정은 원료로 사용되는 폴리머들을 고온에서 용융시켜 실의 형태로 만드는 Spinning(방사) 공정과 방사된
실에 연신시키고, Crimp를 부여하고, 기능성을 부여하는 Drawing(연신) 공정으로 이루어 집니다.

KAF에서 생산하는 단섬유는 Polypropylene(PP) Monocomponent 단섬유 (단성분)와
Sheath/Core형 Bicomponent(이성분) 단섬유로 나뉘어 집니다. Sheath/Core형 Bicomponent 단섬유에는
PE/PP (폴리에틸렌 / 폴리프로필렌) 제품과 PE/PET (폴리에틸렌 / 폴리에틸렌테레프탈레이트) 제품이 있습니다.
주로 부직포의 원료로 사용되며, 단섬유로 제작된 부직포는 촉감이 부드럽고 두께감이 좋습니다.

02

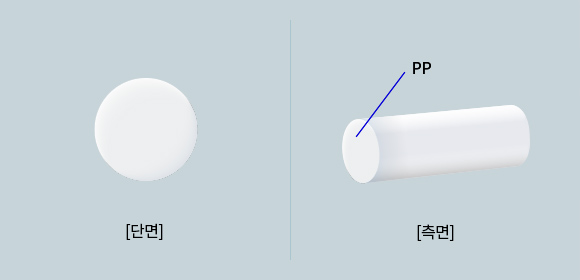

Polypropylene(PP) 단섬유

Polypropylene(PP) 단섬유

03

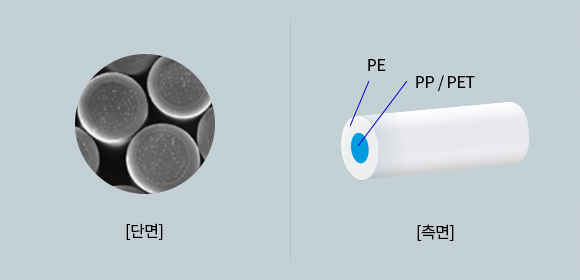

Sheath/Core형 Bicomponent 단섬유

Sheath/Core형 Bicomponent 단섬유

Application

KAF에서 생산된 단섬유는 주로 부직포(Nonwoven)로 만들어지며, 방적사로도 만들어집니다.

01

Thermal point bonded nonwoven

Thermal point bonded nonwoven

Calender roll의 Embo pattern에 의해 Point bonding 됩니다.
그로 인해 납작하고(Flat) 매끄러운(Smooth) 특성을 가지고 있습니다.

02

Air-through bonded nonwoven

Air-through bonded nonwoven

Oven 안의 hot air에 의해 Sheath 부분이 전체적으로 녹아서 bonding 됩니다.
그로 인해 두껍고(Bulky) 부드러운(Soft) 특성을 가지고 있습니다.

ITEM SPEC FEATURE 주요 APPLICATION 자료
Regular KSS-700

Titer1.5 ~ 6.0de

Length40 ~ 120mm

FinishHydrophilic

Good Softness Good workability Good nonwoven strength Diaper, Sanitary Napkin
- Top sheet, Loop(Frontal zone)
Wipes Mask - Backing(Outer), Lining(Inner) Others
(Meat pad, Pet(animal) sheet, etc.)
KSS-790

Titer1.5 ~ 6.0de

Length40 ~ 120mm

FinishDurable Hydrophilic

Durable hydrophilicity
(3 time strike through
less than 3sec)
Good Softness Good workability Good nonwoven strength
Diaper, Sanitary Napkin - Top sheet Wipes Others (Pet(animal) sheet, etc.)
KSS-770

Titer1.5 ~ 6.0de

Length40 ~ 120mm

FinishHydrophobic

Strong hydrophobicity Good anti-static performance Good Softness Good workability Good nonwoven strength Diaper, Sanitary Napkin
- Back sheet, Side cover
Mask - Backing(Outer) Medical - Orthopedic Cast(Gips)
Special HE series

Titer2.2 ~ 2.8de

Length40 ~ 120mm

FinishHydrophilic, Hydrophobic

High elongation Good Softness Good workability Good nonwoven strength Diaper - Elastic ear
HL series

Titer2.2 ~ 3.0de

Length40 ~ 120mm

FinishHydrophilic, Hydrophobic

Superior Lamination strength Lower melting temperature Good Softness Good workability Good nonwoven strength Diaper - Elastic ear, Loop
SW-1001

Titer1.5 ~ 2.2de

Length40 ~ 120mm

FinishHydrophilic

Suitable for spunlace process Low Foaming Bulkier than other material Excellent Chemical Resistance Diaper - Elastic ear(Spunlace) Wipes
NC-967

Titer1.5 ~ 6.0de

Length40 ~ 120mm

FinishHydrophilic

Tetralobal cross section Soil-hinding property Bulkier than normal PP staple fiber Good absorptive capacity Good wiping(Cleaning) power Good Softness Good workability Better nonwoven strength
than normal PP staple fiber
Diaper - Elastic ear(Spunlace) Wipes
ITEM SPEC FEATURE 주요 APPLICATION 자료
Regular KEP 3 series

CompositionSheath : PE / Core : PP

Titer1.5 ~ 2.0de

Length40mm

LusterBright, Semi-dull, Full-dull

FinishDurable Hydrophilic

Durable hydrophilicity
(3 time strike through
less than 3sec)
Good rewet Good Softness Good workability Good nonwoven strength
Diaper, Sanitary
Napkin - Top sheet
Mask - Lining(Inner)
KEP 2 series

CompositionSheath : PE / Core : PP

Titer1.5 ~ 2.0de

Length40mm

LusterBright, Semi-dull, Full-dull

FinishHydrophobic

Strong hydrophobicity Good anti-static performance Good Softness Good workability Good nonwoven strength Diaper, Sanitary
Napkin - Back sheet,
Side cover
KET 3 series

CompositionSheath : PE / Core : PET

Titer1.5 ~ 2.0de

Length40mm

LusterSemi-dull, Full-dull

FinishDurable Hydrophilic

Durable hydrophilicity
(3 time strike through
less than 3sec)
Good rewet Good Softness Good workability Good nonwoven strength
Diaper, Sanitary Napkin
- Top sheet
Mask - Lining(Inner)
KET 2 series

CompositionSheath : PE / Core : PET

Titer1.5 ~ 2.0de

Length40mm

LusterSemi-dull, Full-dull

FinishHydrophobic

Strong hydrophobicity Good anti-static performance Good Softness Good workability Good nonwoven strength Diaper, Sanitary
Napkin - Back sheet,
Side cover
Special HP-150HB

CompositionSheath : PE / Core : PP

Titer5.0de

Length51mm

LusterBright, Semi-dull, Full-dull

FinishDurable Hydrophilic

Excellent bulkiness Good resilence Good workability Good nonwoven strength Durable hydrophilicity
(3 time strike through
less than 3sec)
Diaper, Sanitary
Napkin - ADL,
SAP sheet
HP-1150

CompositionSheath : PE / Core : PP

Titer15.0de

Length51mm

LusterBright, Semi-dull, Full-dull

FinishDurable Hydrophilic

Excellent bulky High titer Good workability Good nonwoven strength Durable hydrophilicity
(3 time strike through
less than 3sec)
Diaper, Sanitary
Napkin - ADL,
SAP sheet
Mask - Support
